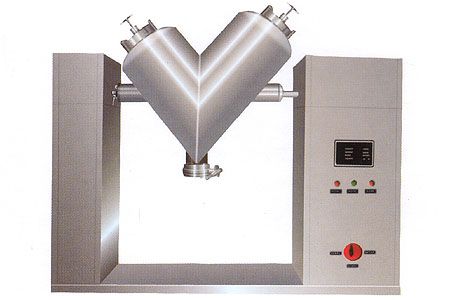

Purpose and features:
(1) It is used to mix the dry-powder, granular materials with good liquidity.
(2) It consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%.
(3) It adopts vacuum feeding under sealing state. There¡¯s no driving structure inside and be clean, no dead corner in according with GMP standard.
Technical parameters
|
|
Whole volume (M3) |
loading factors |
Max. loading capacity |
A |
B |
C |
D |
E |
F |
|
L
(mm) |
W
(mm) |
Center height
(mm) |
Feeding hole diameter(mm) |
Diameter of discharge hole (mm) |
Height of discharging hole (mm) |
|
|
0.1 |
0.4 |
40 |
1900 |
600 |
1190 |
§æ250 |
§æ80 |
650 |
|
VH-0.2 |
0.2 |
0.4 |
80 |
2270 |
700 |
1440 |
§æ300 |
§æ100 |
750 |
|
VH-0.3 |
0.3 |
0.4 |
120 |
2320 |
800 |
1470 |
§æ300 |
§æ100 |
750 |
|
VH-0.5 |
0.5 |
0.4 |
200 |
2520 |
900 |
1510 |
§æ300 |
§æ150 |
750 |
|
VH-1.0 |
1.0 |
0.4 |
400 |
3040 |
1000 |
1765 |
§æ400 |
§æ150 |
750 |
|
VH-1.5 |
1.5 |
0.4 |
600 |
3300 |
1000 |
1750 |
§æ400 |
§æ200 |
750 |
|
VH-2.0 |
2.0 |
0.4 |
800 |
3700 |
1200 |
2000 |
§æ400 |
§æ200 |
750 |
|
VH-2.5 |
2.5 |
0.4 |
1000 |
3950 |
1500 |
2200 |
§æ400 |
§æ200 |
750 |
|
VH-3.0 |
3.0 |
0.4 |
1200 |
4100 |
1500 |
2140 |
§æ400 |
§æ200 |
750 |
|
Type |
G |
H |
speed of main body (r/min) |
motor power(kw) |
whole weight(kg) |
Matched vacuum-pump model |
|
Height of rotation
(mm) |
Diameter of rotation
(mm) |
|
VH-0.1 |
1730 |
1080 |
15 |
1.1 |
180 |
W2 |
|
VH-0.2 |
2230 |
1480 |
15 |
1.5 |
250 |
W2 |
|
VH-0.3 |
2290 |
1540 |
15 |
1.5 |
350 |
W2 |
|
VH-0.5 |
2370 |
1620 |
15 |
1.5 |
550 |
W2 or SK-1.5 |
|
VH-1.0 |
2880 |
2130 |
12 |
3.0 |
1000 |
W3 or SK-3 |
|
VH-1.5 |
3050 |
2300 |
10 |
4.0 |
1100 |
W3 or SK-3 |
|
VH-2.0 |
3350 |
2500 |
10 |
5.5 |
1500 |
W3 or SK-3 |
|
VH-2.5 |
3800 |
3000 |
8 |
7.5 |
1700 |
W4 or SK-6 |
|
VH-3.0 |
3850 |
3200 |
6 |
7.5 |
1800 |
W5 or SK-9 | |
