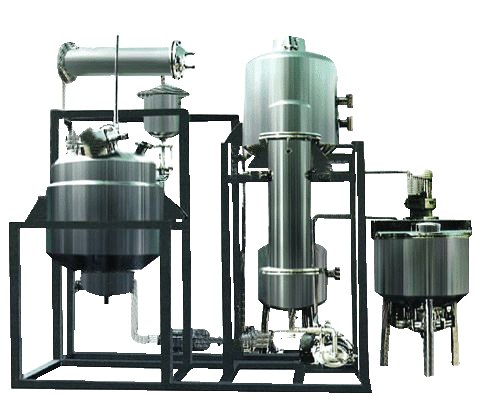

Features:
(1) Extraction is suitable for the ordinary pressure, water decoction, warm immersion, hot reflux, forced circulating diacolation, eatration of perfume oil and recovery of organic solvents, etc. Concentration is suitable for the extracting solution, Chinese medicine, plants, animals, foods, biological medicines, chemical liquids. Specially, it is suitable for small and medium-sized pharmaceutical companies, experimental factories, hospitals, research department to develop new medicines and the extraction&concentration of new process.
Main technical data
|
NO |
Specificastion |
DT100 |
DT200 |
DT300 |
DT500 |
|
1 |
The content of extract pot |
100L |
200L |
300L |
500L |
|
2 |
The content of condense pot |
100L |
200L |
300L |
500L |
|
3 |
The working pressure of extract pot |
Standard pressure |
|
4 |
The pressure inside extract pot |
Standard pressure |
|
5 |
Heating medium |
Heat-conducting oil (Vapour) |
|
6 |
Condensed vacuum degree |
0.05~0.08MPa |
|
7 |
Condensed temperature |
45¡æ~100¡æ |
|
8 |
Extract temperature |
45¡æ~100¡æ |
|
9 |
Extract eletrially-heating |
3KW |
4KW |
6KW |
8KW |
|
10 |
Condense electrically-heating |
3KW |
4KW |
6KW |
8KW |
|
11 |
The diameter of in-material |
400 |
600 |
600 |
700 |
|
12 |
The power of medicinal mouth liquid pump |
1.1KW |
1.5KW |
2KW |
2KW |
|
13 |
Vacuum pump |
2X-3KW |
2X-3KW |
2X-5KW |
2X-5KW |
|
14 |
Temperature-displaying limits |
0~200¡æ |
|
15 |
Outer size |
2800¡Á1800¡Á1900 |
3100¡Á2200¡Á2300 |
3300¡Á2400¡Á2500 |
3800¡Á2500¡Á2700 | |
