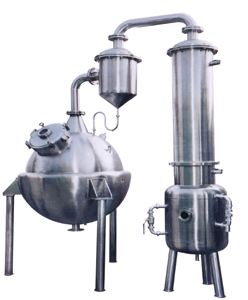

¡ö It consists of concentration tank, condenser, gas-liquid separator, cooler, liquid receiver. The concentration tank is the structure of jacket, the condenser is multitubular type and cooler is coil type. It is suitable to concentrate the liquid materials in the industries such as pahrmacy, food, chemical industry, etc. and aslo can recycle the alcohol and do some simple reflux extraction.
Technical parameters:
|
Type
Item |
50L |
100L |
200L |
300L |
500L |
700L |
1000L |
2000L |
|
Steam pressure( Mpa) |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
|
Evaporation capacity (kg/h) |
20 |
40 |
60 |
80 |
100 |
130 |
160 |
350 |
|
Heating area (m2) |
0.35 |
0.45 |
0.6 |
0.8 |
1.29 |
1.6 |
2.1 |
4.4 |
|
Condensation area (m2) |
1.2 |
1.7 |
2.4 |
3 |
3.2 |
3.5 |
4.5 |
9.3 |
|
Cooling area(m2) |
0.25 |
0.35 |
0.45 |
0.77 |
0.8 |
0.85 |
1 |
1.8 |
|
Receiver volume (L) |
45 |
50 |
55 |
55 |
80 |
100 |
150 |
300 |
|
Energy consumption (kg/h) |
23 |
46 |
70 |
92 |
115 |
150 |
185 |
403 |
|
Vacuum degree (Kpa) |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
|
Weight (kg) |
200 |
280 |
380 |
130 |
630 |
720 |
980 |
1400 |
|
Feeder diameter (mm) |
ø120 |
ø15 |
ø150 |
Ø150 |
ø200 |
ø200 |
ø200 |
ø250 |
|
outline dimension (mm) |
1220¡Á600¡Á2420 |
1350¡Á750¡Á2800 |
1500¡Á800¡Á2950 |
1520¡Á850¡Á3000 |
1900¡Á1000¡Á3620 |
2100¡Á1300¡Á3450 |
2200¡Á1400¡Á3520 |
3060¡Á1700¡Á4000 | |
