Summarize:

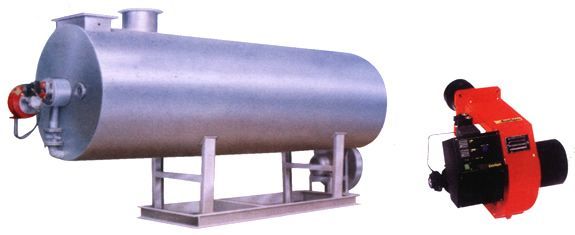

(1)JRFY series horizontal metal fuel-oil indirect heating hout-air furnace, a hot-air heating device (heat efficiency could reach 65%-85%), which is designed by ourselves, combines burning and heat-exchange and features high heat efficiency. The outlet hot-air temperature could be 300¡æ. Moreover, if special design, the temperature will reach 500~800¡æ. Fume and air take each pipe so that the air after be heat transferred will be clean. It can be matched with all kinds of drier and is widely used to heat and dehumidify the agricultural products such as foodgrain, seed, fodder, fruit, dehydrated vegetables, mushroom, agaric, white fungus, tea-leaves, tobacco leaves, etc. and food, pharmaceuticals, chemical raw materials, etc.
Features:
(1) easy of operation, low labor intensity.
(2) Compact structure, small land area. To use imported burner with complete burning and no pollution.
Technical Parameters
|
Parameter
Model |
output calorie(kj/h) |
output air amount(m2/h) |
output Temperature(¡æ) |
oil consumption |
type of combustor |
|
JRFY-2.5 |
1.045¡«105 |
1500¡«560 |
60¡«200 |
4¡«5 |
M4 |
|
JRFY-4 |
1.672¡«105 |
3500¡«930 |
60¡«200 |
6¡«7 |
M8 |
|
JRFY-8 |
3.344¡«105 |
5600¡«1480 |
60¡«200 |
11.5¡«13.5 |
M12 |
|
JRFY-15 |
6.270¡«105 |
12000¡«2160 |
60¡«250 |
21.5¡«25 |
M20 |
|
JRFY-30 |
12.54¡«105 |
25000¡«4330 |
60¡«250 |
43¡«50 |
MP35MB |
|
JRFY-40 |
16.72¡«105 |
28000¡«5660 |
60¡«250 |
57¡«67 |
MP45MB |
|
JRFY-60 |
25.08¡«105 |
45000¡«8660 |
60¡«250 |
86¡«100 |
MP80MB |
|
JRFY-80 |
33.44¡«105 |
83000¡«12500 |
60¡«350 |
114¡«135 |
MP130AB |
|
JRFY-160 |
66.88¡«105 |
134400¡«23000 |
60¡«350 |
228¡«270 |
MP200AB |
|
JRFY-200 |
83.60¡«105 |
17000¡«28000 |
60¡«350 |
286¡«334 |
MP300AB | |
